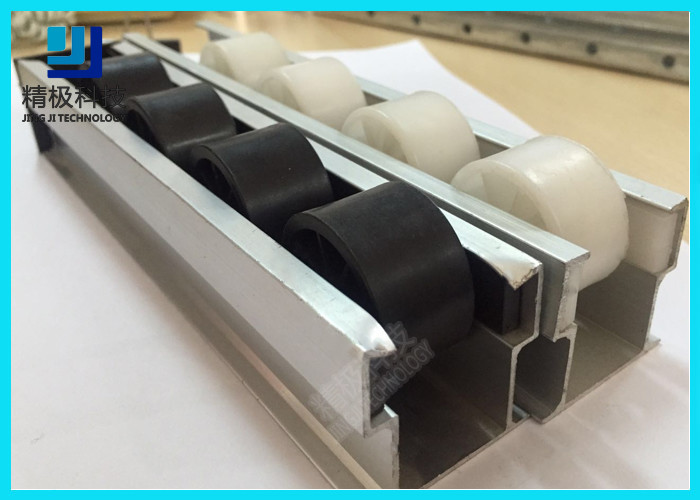

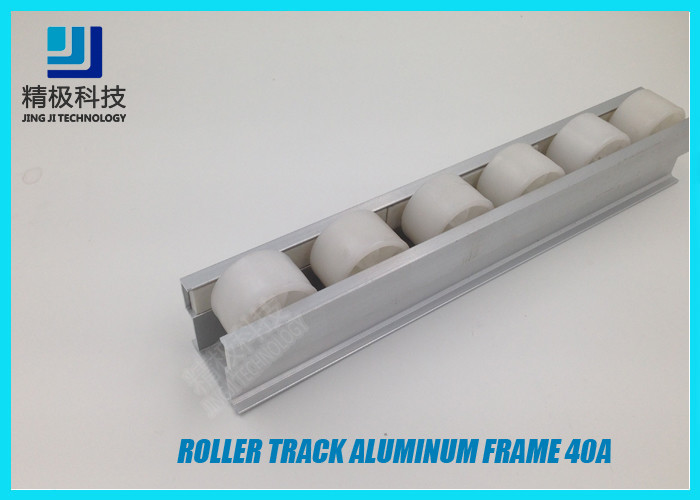

Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A

Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A

  • Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A
  • Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A
  • Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A
  • Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A
Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A
Ürün ayrıntıları:
Place of Origin: Shenzhen ,China
Marka adı: Top-King
Sertifika: ISO9001:2008;RoHS
Model Number: 40A
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1000 meters
Fiyat: Negotiation
Packaging Details: 10 bars packing together in woven bag
Delivery Time: Within 10 working days after received deposit.
Payment Terms: TT, L/C, Western Union
Supply Ability: 5000 meters per day
İletişim
Detaylı ürün tanımı
Frame Material: Aluminum frame Wheels Material: PE
Wheel Color: Black or White Bearing: 80KG/Meter
Width: 40mm Height: 34mm
Standard length: 4000 mm/pcs Recyclable: YES
Frequency of use: Very high Application: Track Flow ,Conveyor,Slide rail type recycle trolley.
Vurgulamak:

roller track systems

,

heavy duty roller track

Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A 0



Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A



Description :



The Aluminum roller track is with a aluminum frame and plastic wheels.

This Flexpipe product is a major component in the creation of flowracks and conveyor structures.

This conveyor can be installed with multiple accessories to create different slopes and configurations. This product is offered in one length for optimal shipping prices and better maneuverability.



All Flexpipe conveyor accessories are engineered .

The Flexpipe conveyor and its accessories will work on any 28mm pipes and joints, although some of these systems don't use the same conveyor size so be sure to check the spec sheet to see if your old conveyor parts are compatible.



Every part in the Flexible conveyor system allowing you to build antistatic structures for the transportation of electronics and electrical components.

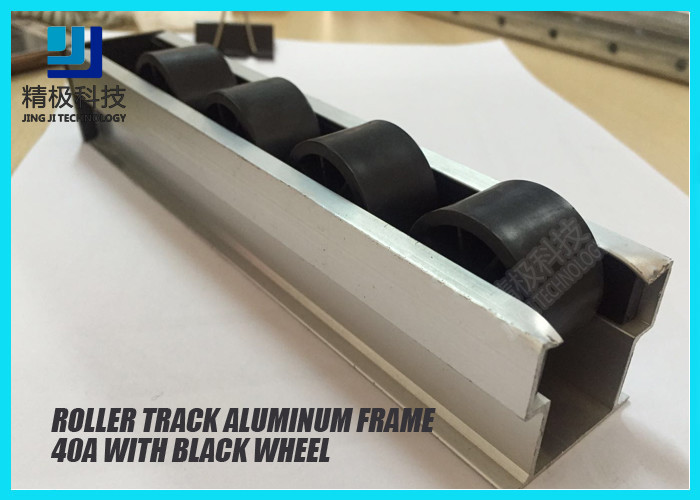

Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A 1



Specification :



Item code 40A
Production name Aluminum roller track
Color of wheel Black, white
Standard length 4000mm per bar
Width of track 40 mm
Reusable Yes
Material of wheel PP





Features:



1. Roller tracks are designed to efficiently transport material of varied size and weight.

2. Using the placon can improve the efficiency of goods flow, due to its easiness to control quality

and store by the ' first-in first-out' ( FIFO) rules
3. Roller tracks are most often used in flow racks, but can be used for virtually any material flow

application, when combining with our coated pipes and pipe fitting.
4. Ideal for requirements in warehouse racking
5. Using our all kinds of metal pulley connectors, the roller tracks are easily installed and will

support significant weight. The slope and spacing between tracks is adjustable and determined

by the size and weight of the material being handled.



How to Install



Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A 2



Make sure you have the following parts:
1 40A Roller Track
1 Draw slip
1 Saw
2 Take the 40A Roller Track and cut it regarding the lenght of your Draw slip conveyor. Don't forget to take into account the lengthof your conveyor connectors.
3 Take the 40A Roller Track and push it on the outside of the Draw slip



Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A 3



Applications:

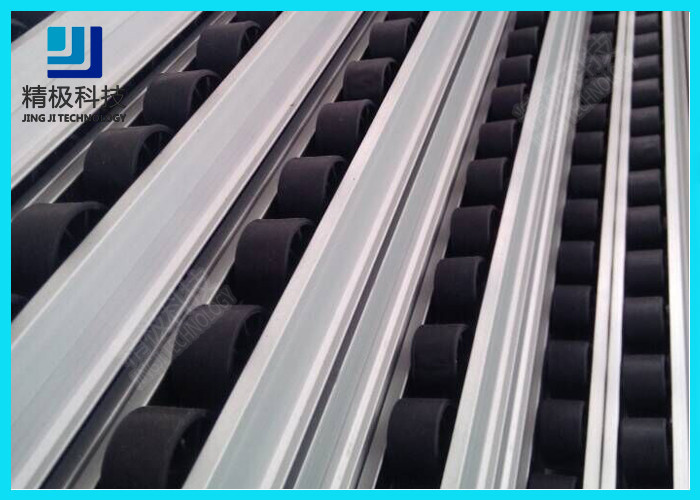

Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A 4

Aluminum Roller Track Flow Rail Roller Gravity Conveyor With PE Rollers 40A 5
